The Kabuto suitcases meet the size limits set by the IATA international organization, which includes major US and international companies. The dimensions of the bags are:
2 Wheels: Cabin size (retracted):
Height: 21.7” (55 cm)
Width: 13.8” (35 cm)
Depth: 9.9” (23 cm)
Cargo size (expanded)
Height: 29.5 inches (75 cm)
Width: 13.8 inches (35 cm)
Depth: 9.9 inches (23 cm)
Weight: 7.5 lbs. (3.4kg)
4 wheels:
Height: 22” (55cm)
Width: 14” (36 cm)
Depth: 9.9” (23 cm)
Weight: 6.4 lbs. (2,9kg)
To note: Some companies may change at any time the conditions of weight and size of baggage accepted in the cabin. We recommend that you consult the airline directory to check their latest formats
Kabuto suitcase uses a 32 watts Lithium-ion removable battery, which is well within the FAA limit of 100 watts on Li-ion batteries.
As body scans, medal detectors and random bag checks are part of a standard security practice in airports, you may be asked to open your suitcase. All you need to do is to show the removable battery.
The battery in the Kabuto® suitcase is removable and has to be removed to check-in in order to comply with the latest airlines regulations.
Find all the standards in force on the official website of IATA( International Air Transport Association).

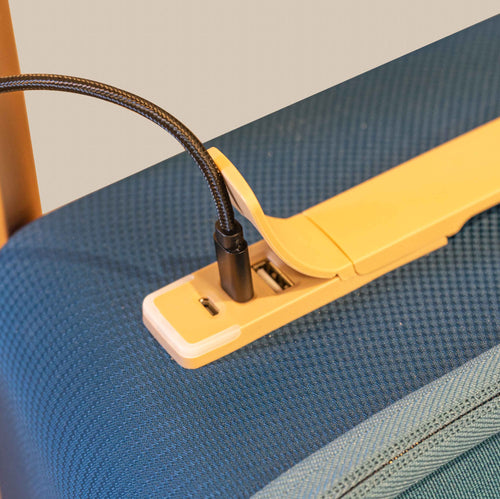

Our smart luggages are equipped with an USB-C plug. As a general rule USB C power supply is implement on the high laptops and Ultra-Portable. However, some manufacturers of laptops seem reluctant to implement this new standard.
Here is a non-exhaustive review of the major brands
• APPLE all models are fitted with USB C power supply. • ACER All Ultra-portable, except OPP. 15” computers and high performance laptop still use a traditional coaxial power supply • HP All Ultra-portable. 15” computers and high performance laptop still use a traditional coaxial power supply • CHROMEBOOK All models are fitted with USB C power supply • DELL All Latitude and XPS. All models with USB C power supply • ASUS none are USB-C compatible • LENOVO none are USB-C compatible • Inspiron and Vostro only some models are compatible with USB-C
For other brands, please refer to your laptop notice to check if it's USB-C powerable.
Security officers have a master key to open your luggage in case of necessity: let TSA know they hold a master key and point out the logo on the TSA approved smart-lock.
Your Kabuto® has been designed in accordance to civil aviation regulation FAA. The electronic lock is normally dormant and turns on as you approach a finger to save battery life. You can safely open your luggage during a flight, as long as the signal "fasten your seatbelt" is not lit.
Kabuto lifetime warranty covers the following:
• the telescopic handle, • the top carry handle containing electronics (fingerprint lock opening system), • USB plugs, • TSA approved lock, • the wheels (tires may be replaced), • the zippers. • The battery warranty is 18 monthsPlease refer to our Terms and conditions for more details
The Kabuto® Lite is exactly the same expandable format as the Kabuto®, it does not have a battery or fingerprint opening system. A dedicated pocket inside allows you to place your own external battery, you can connect your battery to the cable that feeds the plug near the lock.
According to a report issued by SITA, the percentage of luggage mishandled by airlines averaged 8 pieces per 1,000 passengers (if you are travelling by air). Furthermore more that 75% got back to their owner without any damage, only 3% of these mishandled luggage are ultimately reported lost or stolen…that means only 0,24 piece per 1000 passenger would need GPS to locate their luggage (not to mention that GPS is quite expansive and has its own limitations).
Kabuto® is also a carry-on, that means mainly that you have it with you in the overhead compartment most of the time...
For these reasons, we do not think that GPS baggage tracking is practical at this moment in time.
2 wheels : Dimensions pocket/ 12" computers / USB A socket 2 wheels Black Copper : dimensions pocket/ computers 13'' USB A socket 4 wheels: 13" pocket/ computer size 13" USB C socket
Our bearings are the same used on electric skateboards. Where first priority is long and effortless spinning, these are metallic bearings and not plastic.
Warranty
Quietude.io guarantees the Kabuto lugagge Lifetime against compliance and latent defects, under the following conditions:
The customer must keep the proof of purchase in order to benefit from the guarantee. All our products have a warranty against any manufacturing material or production defaults from the date of purchase, including the telescopic handle, the top carry handle containing electronics (fingerprint lock opening system), USB plugs, TSA approved lock, the wheels (tires may be replaced), zippers.
Orders are shipped within 24 to 48 hours (excluding weekends and public holidays). This time may be punctually extended.
Delivery in France by Colissimo (2-3 days), in Europe (4-5 days), and by DHL in the world (4-10 days). If you choose Express Delivery your order will be shipped within 24h with Chrono Express (to Berlin in 1 day, to Lisbon in 1 to 2 days, Casablanca in 2 to 3, New York in 2, Shanghai in 3 to 4, or to Pointe-à-Pitre in 2) Due to the sharp increase of the shipping cost, we had no choice but to charge part of it. On other hand we have significantly reduced the price of the Kabuto luggage.
You are entitled to return all products from http://mykabutocom within 100 days of receiving the merchandise to Quietude.io for full reimbursement, provided the merchandise is complete, unused and undamaged.
The products shall be returned with its original packaging, with the original labels, brand new, without having used it or washed it, wheels must not having been rolled. After 100 days, the sale is final.We wish to draw your attention to the fact that we can only accept return shipments after you have made a request to contact@mykabuto.com. You will receive a confirmation with the complete address to return your luggage. We also draw your attention to the fact that return shipping charges for shipments will not be reimbursed.
USER GUIDE KABUTO 4W
Devices and bottom compartment
If you received a luggage with 1 USB-C port, 1 micro-USB and 2 USB-A, and a new Kabuto Powerbank, please plug your powerbank as follows :
You'll need a 3-port usb Hub and a USB-C to Usb-B adaptor. Please contact us if you did not receive these items with your luggage.
If you received a 2 USB ports hub you'll need a USB-B to USB-C adaptor to plug the last USB-B cable.
If you need any help, please send a photo of your cables and your power bank. We'll be happy to help.
Fingerprint system
First time registration : When you have received your new suitcase, no fingerprint is recorded in the Memory, any finger will open it until you have recorded one. To record the first fingerprint:
• Place one finger on the sensor to Wake up the system, • Press the button next to the sensor and hold it down for 2 seconds. The LED will lit yellow quickly, • Place one finger on the sensor for scanning. The LED lits up blue then green when the scan is completed, • Remove the finger, the LED flashes again. • You have to scan the same finger 4 times in succession to record a full fingerprint, until the LED changes to solid blue.
Your fingerprint is saved and will be the only one that can open the bag, it is the master fingerprint that allows to register any additional fingerprint.
Further fingerprint registration registration
You can record up to 10 different fingerprints. To record a second fingerprint – and any additional one – you have to activate the system with the master fingerprint.
• Then quickly press the button next to the sensor and hold it for 2 seconds, until the green LED flashes rapidly. • Repeat the registration steps as explained above for the first registration
You can record more fingerprints by first opening the lock with any registered finger first, then follow the above procedure.
The fingerprint recognition circuit is powered by 2 x LR0003 AAA batteries that should be replaced every 18 months. The LED near the scanner will blink slowly in red when the dry sells are nearly worn.
To access the batteries holder which is located inside the suitcase right under the carry handle, lay flat your suitcase and unzip the fabric. The zipper is hidden alongside of the the suitcase. Slide the cover of the batteries holder and replace with 2 x Alkaline AAA batteries.
We recommend that you purchase long-life alkaline battery to extend the period of use.
Should the batteries go completely dead while you suitcase is locked, you can power the lock from outside by plugging a USB C cable into the USB C socket located in the carry handle, opposite side of the scanner.
Your Kabuto comes with a set of spare keys, remember to keep one with you (in your wallet for example) while on the move.
The TSA lock of the Kabuto lite model
The Kabuto® Lite does not come with the auto lock with a fingerprint, but with a TSA approved 3-digit lock.
To set your own code, follow these steps :
1 - Put the dials at its original numbers 0-0-0. To open the lock, move upward the B button
2 - With a pencil or something pointed, press firmly on the A button next to the 3 dials. Keep it pressed down.
3 - With your other hand, turn the dials to the desired setting.
4- Then, release the button A .Now you have finished to set your personal combination. Please remember your personal combination by heart.
5 - Please repeat the above steps to reset the numbers.
Devices and bottom compartment
The Kabuto case offers two compartments to store your computer:A large front pocket for a 15 inches computer and a removable connected back pocket with USB C for 13' laptop
Size of the shoe compartment : 13.5 cm (5.3 inches) high, 21 cm (8.2 inches) deep, 33 cm (13 inches) wide
You have just bought a Kabuto luggage? Click here to activate your warranty.
If you bought your Kabuto on our eshop, the warranty is automatically registered with your online order, no action is required.
USER GUIDE KABUTO 4WD EXPANDABLE
Start
If you have the new generation of Kabuto powerbank and 3 USB-A : plug the USB port doubler on the two rond USB-A cable. Plug the USB-C adapter on the flat USB-A cable.
The keys are in the back pocket
Fingerprint system
First time registration : When you have received your new suitcase, no fingerprint is recorded in the Memory, any finger will open it until you have recorded one. To record the first fingerprint:
• Place one finger on the sensor to Wake up the system, • Press the button next to the sensor and hold it down for 2 seconds. The LED will lit yellow quickly, • Place one finger on the sensor for scanning. The LED lits up blue then green when the scan is completed, • Remove the finger, the LED flashes again. • You have to scan the same finger 4 times in succession to record a full fingerprint, until the LED changes to solid blue.
Your fingerprint is saved and will be the only one that can open the bag, it is the master fingerprint that allows to register any additional fingerprint.
Further fingerprint registration registration
You can record up to 10 different fingerprints. To record a second fingerprint – and any additional one – you have to activate the system with the master fingerprint.
• Then quickly press the button next to the sensor and hold it for 2 seconds, until the green LED flashes rapidly. • Repeat the registration steps as explained above for the first registration
You can record more fingerprints by first opening the lock with any registered finger first, then follow the above procedure.
The fingerprint recognition circuit is powered by 2 x LR0003 AAA batteries that should be replaced every 18 months. The LED near the scanner will blink slowly in red when the dry sells are nearly worn.
To access the batteries holder which is located inside the suitcase right under the carry handle, lay flat your suitcase and unzip the fabric. The zipper is hidden alongside of the the suitcase. Slide the cover of the batteries holder and replace with 2 x Alkaline AAA batteries.
We recommend that you purchase long-life alkaline battery to extend the period of use.
Should the batteries go completely dead while you suitcase is locked, you can power the lock from outside by plugging a USB C cable into the USB C socket located in the carry handle, opposite side of the scanner.
Your Kabuto comes with a set of spare keys, remember to keep one with you (in your wallet for example) while on the move.
Expending your suitcase
Simply undo the zipper that goes around the lower section of the suitcase;
Pull the telescopic handle to its maximum.
Expand your Kabuto by holding the telescopic handle with one hand, then with the other hand pull the top handle.
You’ve just made your suitcase 50% bigger !
Devices and bottom compartment
The Kabuto case offers two compartments to store your computer:A large front pocket for a 15 inches computer and a removable connected back pocket with USB C for 13' laptop
Size of the shoe compartment : 13.5 cm (5.3 inches) high, 21 cm (8.2 inches) deep, 33 cm (13 inches) wide
You have just bought a Kabuto luggage? Click here to activate your warranty.
If you bought your Kabuto on our eshop, the warranty is automatically registered with your online order, no action is required.
USER GUIDE KABUTO 2W
Fingerprint system
First time registration : When you have received your new suitcase, no fingerprint is recorded in the Memory, any finger will open it until you have recorded one. To record the first fingerprint:
• Place one finger on the sensor to Wake up the system, • Press the button next to the sensor and hold it down for 2 seconds. The LED will lit yellow quickly, • Place one finger on the sensor for scanning. The LED lits up blue then green when the scan is completed, • Remove the finger, the LED flashes again. • You have to scan the same finger 4 times in succession to record a full fingerprint, until the LED changes to solid blue.
Your fingerprint is saved and will be the only one that can open the bag, it is the master fingerprint that allows to register any additional fingerprint.
Further fingerprint registration registration
You can record up to 10 different fingerprints. To record a second fingerprint – and any additional one – you have to activate the system with the master fingerprint.
• Then quickly press the button next to the sensor and hold it for 2 seconds, until the green LED flashes rapidly. • Repeat the registration steps as explained above for the first registration
You can record more fingerprints by first opening the lock with any registered finger first, then follow the above procedure.
Only on the smart carry-on XT 2W model
Should the lock remain dead when you touch it - no light, no sound - you may follow this step:
• Use a USB C cable that you plug into a USB charger. It is important to use a charger plugged in the main, not a battery. This should reactivate the lock.
•Let it charge for 30’ before unplugging.
Only for kabuto 2W 2020
The fingerprint recognition circuit is powered by 2 x LR0003 AAA batteries that should be replaced every 18 months. The LED near the scanner will blink slowly in red when the batteries are nearly worn.
To access the batteries holder which is located inside the suitcase right under the carry handle, lay flat your suitcase and unzip the fabric. The zipper is hidden alongside of the the suitcase. Slide the cover of the batteries holder and replace with 2 x Alkaline AAA batteries.
We recommend that you purchase long-life alkaline battery to extend the period of use.
Should the batteries go completely dead while you suitcase is locked, you can power the lock from outside by plugging a USB C cable into the USB C socket located in the carry handle, opposite side of the scanner.
Your Kabuto comes with a set of spare keys, remember to keep one with you (in your wallet for example) while on the move.
Expending your suitcase
Simply undo the zipper that goes around the lower section of the suitcase;
Pull the telescopic handle to its maximum.
Expand your Kabuto by holding the telescopic handle with one hand, then with the other hand pull the top handle.
You’ve just made your suitcase 50% bigger !
The TSA lock of the Kabuto Lite model
The Kabuto Lite does not come with the auto lock with a fingerprint, but with a TSA approved 3-digit lock.
To set your own code, follow these steps :
1 - Put the dials at its original numbers 0-0-0. To open the lock, move upward the B button
2 - With a pencil or something pointed, press firmly on the A button next to the 3 dials. Keep it pressed down.
3 - With your other hand, turn the dials to the desired setting.
4- Then, release the button A .
Now you have finished to set your personal combination. Please remember your personal combination by heart.
5 - Please repeat the above steps to reset the numbers.
Devices and bottom compartment
The Kabuto case offers two compartments to store your computer: A large front pocket for a 15 inches computer. Kabuto Smart Carry-on XT 2 Wheels 2020 : Connected back pocket with USB A for 13' laptop Kabuto Smart Carry on XT 2 Wheels : Connected back pocket whit USB A for 12' laptop
Delivered only with the 2 SMART wheels except the black copper one
The combination is 0-0-0 and can be customized by following these steps:
1 - Pull the padlock rod - picture
2 - Rotate the shank 90 ° counterclockwise until you can press the shank down. Turn the knobs to obtain the desired combination.
3 - Release the rod to record this combination. You can change this combination by repeating the steps above.
Size of the shoe compartment of all model : 13.5 cm (5.3 inches) high, 21 cm (8.2 inches) deep, 33 cm (13 inches) wide
Hook and luggage cover
Delivered only with the 2 wheels
The case is fully waterproof and ultra shock resistant but also comes with a protective cover (also expandable) that protects the bag from the weather or when you have to put it in the hold.
You have just bought a Kabuto luggage? Click here to activate your warranty.
If you bought your Kabuto on our eshop, the warranty is automatically registered with your online order, no action is required.
